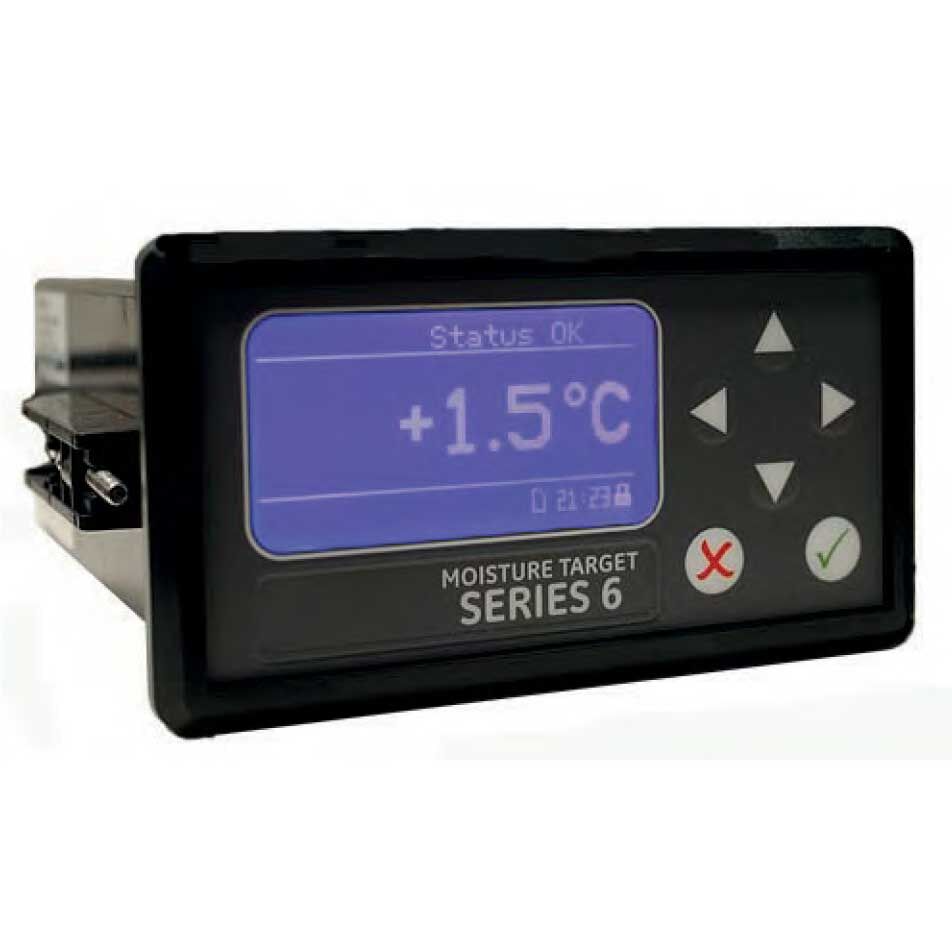

Panametrics MTS6 Moisture Target Series 6 Hygrometer

Liên hệ

Low-cost, single-channel hygrometer for OEM applications
Compatible with M Series moisture probe or VeriDri moisture transmitter
NEMA 4 weatherproof membrane front display/keypad
Built-in isolated current or voltage analog output
MicroSD card for logging data up to 32 GB
Panel-mount and board-level configurations
Alarm Relays
- One fail-safe fault relay
- Two standard Form C relays SPDT, rated for 3 A at 250 VAC/30 VDC
- Set to any level within the range of the instrument; programmable from the front panel
128 x 64 matrix LCD display
Displays dew point temperature in °F, °C or sensor signals for diagnostics
Standard switch-selectable outputs
- 0 to 2 V, 10kΩ minimum load resistance
- 0 to 20 mA, 400Ω maximum series resistance
- 4 to 20 mA, 400Ω maximum series resistance
- User-programmable within the range of the instrument and the corresponding sensor or transmitter
