Millimar P2002 MB
Liên hệ
- Vận chuyển giao hàng toàn quốc
- Phương thức thanh toán linh hoạt
- Gọi ngay +84 978.190.642 để mua và đặt hàng nhanh chóng
MÔ TẢ SẢN PHẨM

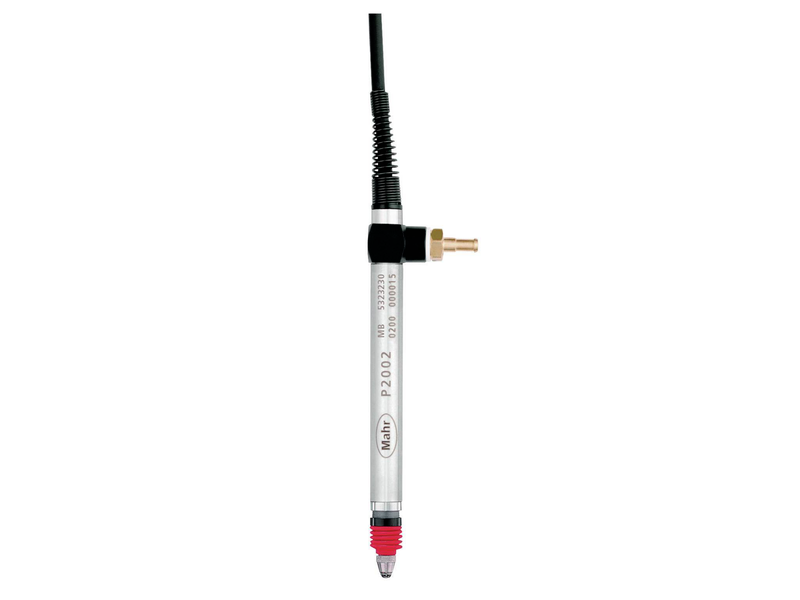

Inductive probe Millimar P2002 MB
Compatibility: Mahr VLDT
Measuring range mm: ± 1 mm
Compressed air retraction (max. 1 bar)
Measuring force (N): Dependent on compressed air
Package contains: test certificate, instruction manual, cap for radial cable output, spanner for preliminary stroke setting
Product information
- Variant with pneumatic load
- Measuring pin mounted in rotary stroke bearing
- High linearity over the entire measuring range
- Excellent electromagnetic shielding (EMC)
- All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply
- Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
| Millimar P2002 MB | Art. no. 5323230 | |
|---|---|
| Product type | P2002 MB |
| Dimensions | a 88.7 mm | b 28 mm | c 21.3 mm | d 6 mm | e 9.2 mm | f 8 mm | h 14 mm | i 26.5 mm | j 3.6 mm | k 9 mm | l 8.3 mm | m 12.5 mm | |
