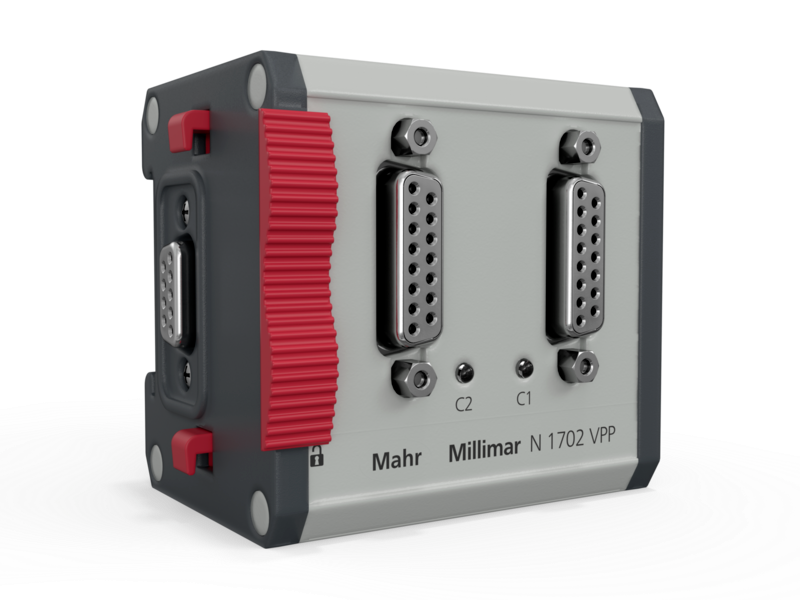

Module for incremental sensors Millimar N 1702 VPP

• Flexibly combinable RS-485 bus modules
• Powerful connection modules for evaluating
  incremental measuring sensors or encoders
• Reference point evaluation
• Synchronous data retrieval from multiple connected measuring probes
• Can be used as a measuring module on the Millimar C 1202 as of firmware version 1.1.0.0
• Connection of N 1700 modules via USB interface to the smart, universal evaluation and configuration software Millimar Cockpit as of version 14.40
• Connects all compatible measuring probe types using one module
• Flexible and modular product combinations to tackle customer-specific measuring tasks
• Maximum theoretical bus data rate of 4189 values/s (depending on the number of connected channels)

Product information

• Flexibly configurable RS485 bus modules
• Powerful connection module to evaluate measuring sensors (incremental 1Vss)
  The same as length measuring probes or encoders
• Reference point evaluation
• Synchronous data retrieval from multiple connected measuring probes
• Can be used as a measuring module on the Millimar C1202 from firmware v.:1.1.0.0
• Connection of N 1700 modules via USB port to the smart, universal evaluation and configuration software Millimar Cockpit from Version 14
• Connects all compatible measuring probe types using one module
• Flexible and modular product combinations to tackle customer-specific measuring tasks
• Maximum theoretical bus data rate of 4189 values/s (depending on the number of connected channels)
