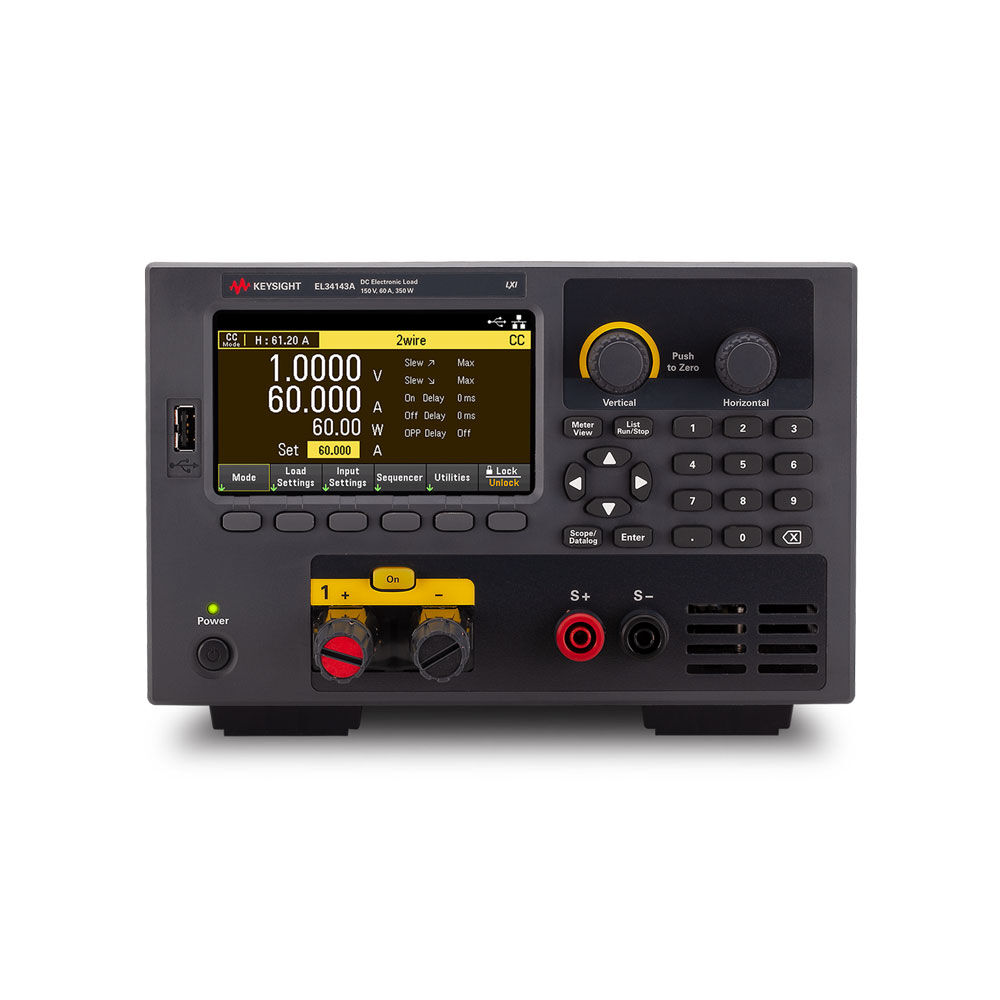

The EL30000 Series bench DC electronic loads provide superior performance in compact bench form factor. A single and dual-channel model is available with up to 600 W – ideal for design verification of consumer power supplies, batteries, battery modules, solar panels, LED drivers, and power converters. You can easily characterize wide-bandgap semiconductor components such as MOSFET and IGBT.

The EL30000 Series bench DC electronic loads are fully SCPI programmable with built-in USB, LAN, and optional GPIB interfaces. Advance features include scope view, data logging, sequencing, and more, enabling you to measure, capture, and quickly display your results.

Measures accurately

• Integrated voltmeter and ammeter
• Precise programming / readback accuracy
• Built-in 2-wire or 4-wire remote sense technology

Captures, stores, and transfers dynamic waveforms

• Data logger that is configurable
• Log voltage, current and energy
• Internal or external memory storage
• Export to .CSV for post analysis

Displays like an oscilloscope for precise analysis

• Performs precise transient analysis with scope function
• Digitizes voltage and current
• Displays results on a 4.3-inch color LCD screen

Advanced characterization

• Use operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
• Improve measurements with low current range
• Dynamic load profiles with List (continuous, pulse, or toggle)
• Adjust transient steps with programmable slew rate
• Modern connectivity: LAN (LXI Core), USB and GPIB (optional)
