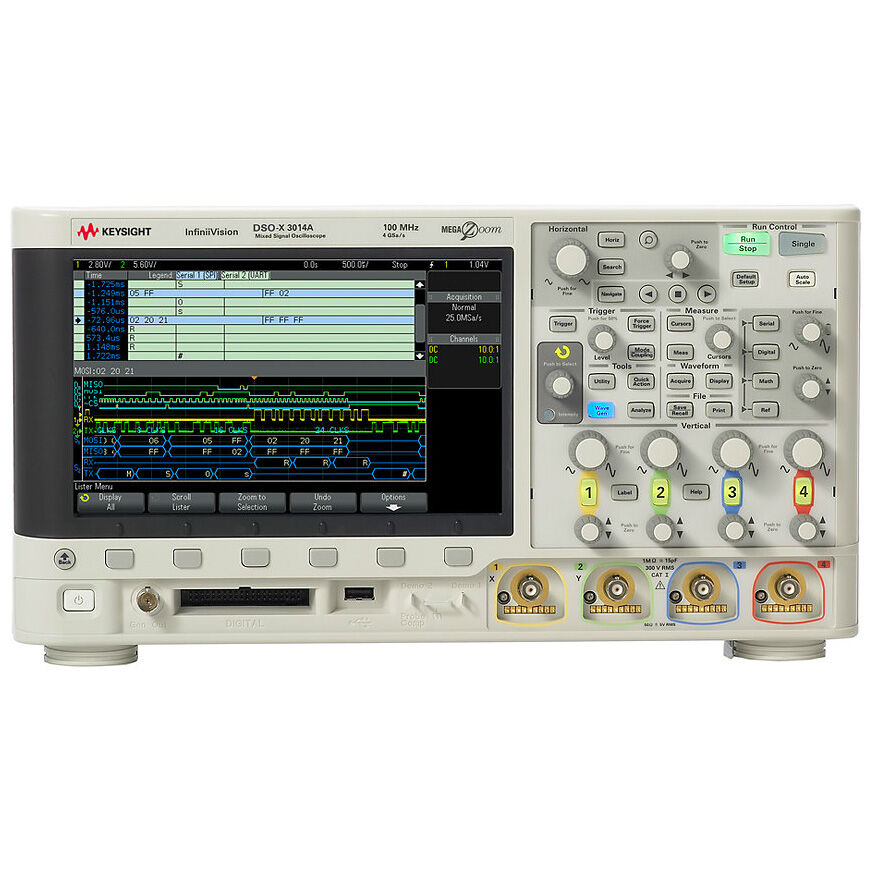

Keysight DSOX3014A Oscilloscope, 4-Channel, 100MHz

Liên hệ

High resolution 8.5-inch display
Up to 1,000,000 wfms/s update rate
Fast, responsive MegaZoom IV deep memory, up to 4 M
Best-in-class oscilloscope
Integrated 16 digital channel mixed signal oscilloscope (MSO)
Serial protocol analyzer (optional)
Industry-exclusive WaveGen built-in function generator (optional)
Upgradable bandwidth
Upgradable MSO
Upgradable WaveGen built-in function generator
Upgradable measurement applications
Bandwidth 100 MHz, 200 MHz, 350 MHz, 500 MHz
Channels 2 or 4 analog channels (DSO) +16 digital channels (MSO)
Sample rate Up to 4 GSa/s
Memory Up to 4 M
Display 8.5-inch WVGA (800 x 480)
Update rate 1,000,000 wfms/s
Upgradable Bandwidth, MSO, measurement applications and WaveGen
Warranty Standard 3-year
Connectivity USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
Includes BV0004B Oscilloscope app
