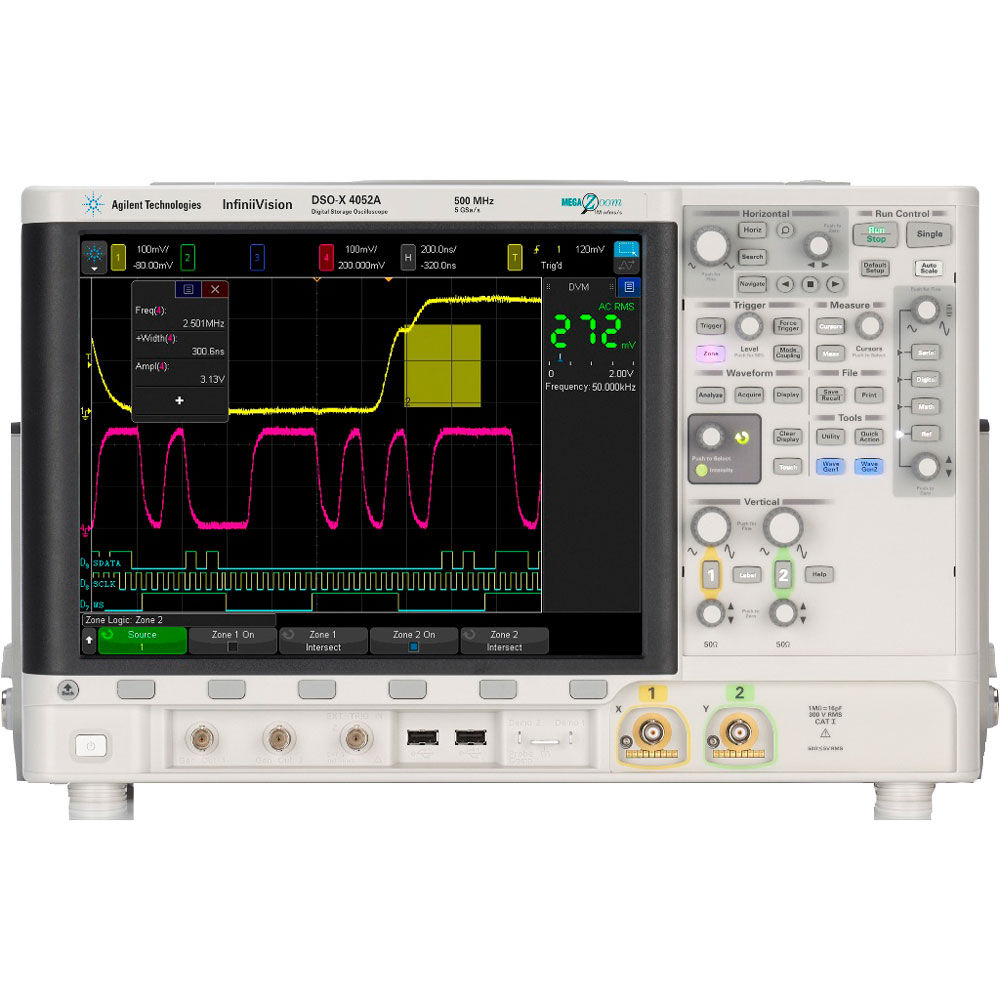

The 4000 X-Series boasts 12.1-inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory.

• 1.5 GHz
• 4 analog plus 16 digital channels
• Easily view signals on the large 12.1-inch capacitive touch screen
• Isolate signals in seconds with exclusive Zone touch triggering
• Capture more data with 4 Mpts memory and standard segmented memory
• See more signal detail with 1,000,000 wfms/s update rate
• Expand your measurement capabilities with full upgradability: Add dual-ch 20 MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis & mask testing at any time

Each Unit Includes

• 3-year warranty (90 days for unserialized accessories such as passive probes)
• Certificate of Calibration, 2-year calibration interval
• One N2894A 700 MHz passive probe (10:1 attenuation) per channel
• One N2756-60001 16-digital-channel MSO cable
• Localized interface, front panel overlay, and built-in help system in English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
• Localized power cord
• Front panel cover
• Documentation CD containing localized user’s guide, service guide, and programmer’s manual
