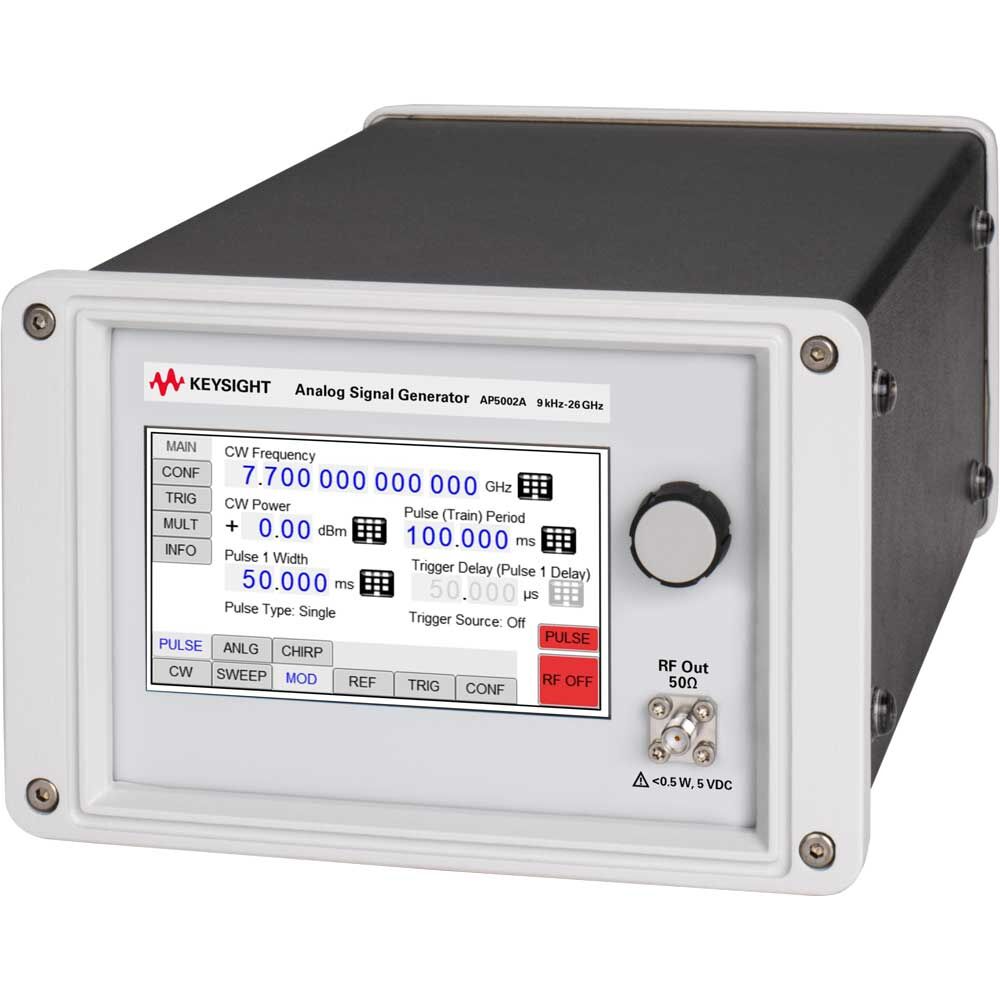

The AP5002A analog signal generator boasts incredible phase noise, wide output power range, fast switching speed, and extensive modulation capabilities all in a compact device. Use onsite or on the go wherever your electronic and wireless modules and systems testing takes you. Easily configure the signal generator using a touch-screen graphic user interface (GUI) or desktop software.

• Characterize devices thoroughly with up to +17 dBm output power and -130 dBc/Hz phase noise
• Accelerate testing with 300 µs switching speed
• Generate a stabilized low-phase noise signal with micro-Hz resolution with an oven-controlled crystal oscillator (OCXO)
• Enhance testing with sweep, trigger functions, and user-programmable external reference frequency
• Upgrade your box to a higher frequency or add more capabilities via a license key
• Frequency: 26 GHz
• Output Power @1 GHz: +23 dBm
• Frequency Switching (Typical): 200 µs
• Harmonics @1 GHz: -30 dBc: -130 dBc/Hz
• Phase Noise @1 GHz (20 kHz offset)
• Type: Analog
