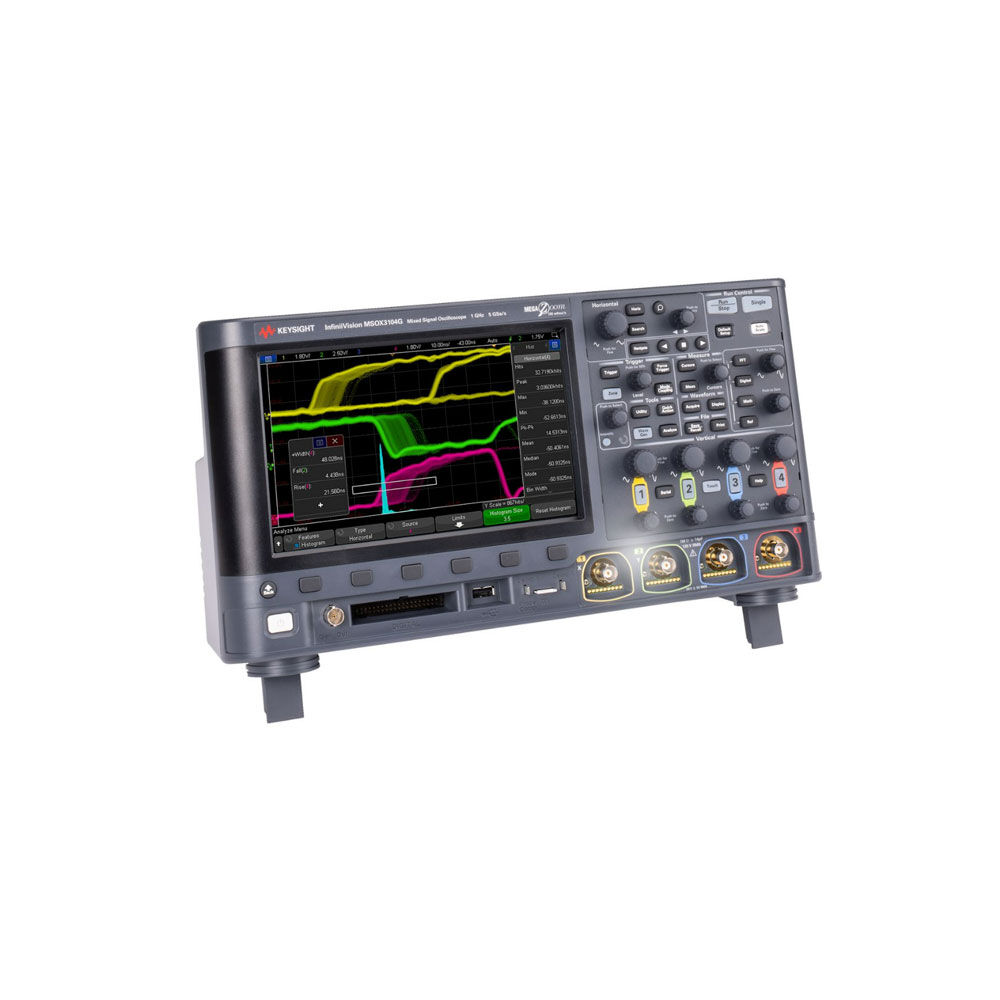

The DSOX3014G 100 MHz oscilloscope provides 4 analog channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate, zone touch trigger with an 8.5-in capacitive touch screen, and standard embedded software with waveform and measurement histograms.

• 100 MHz
• 4 analog channels
• Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen
• Isolate signals in seconds with exclusive Zone touch triggering
• See more signal detail with the 1,000,000 wfms/s update rate
• Capture more data with up to 4 Mpts memory
• Expand your measurement capabilities with full upgradability: add bandwidth, digital channels, and advanced application software at any time

Each Unit Includes

• Embedded Software Package (D3000GENB)
• PathWave BenchVue Oscilloscope Software (BV004B)
• Waveform and measurement histograms
• Integrated instruments: oscilloscope (with LAN / VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plots), 20 MHz arbitrary waveform generator, 3-digit voltmeter, and 8-digital counter and totalizer
• N2843A passive probe: 500 MHz, 10:1 attenuation (1 per channel)
• KeysightCare technical support
• Secure erase
• Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
• Documentation CD containing localized user’s guide, service guide, and programmer’s manual
• Localized power cord and overlay
