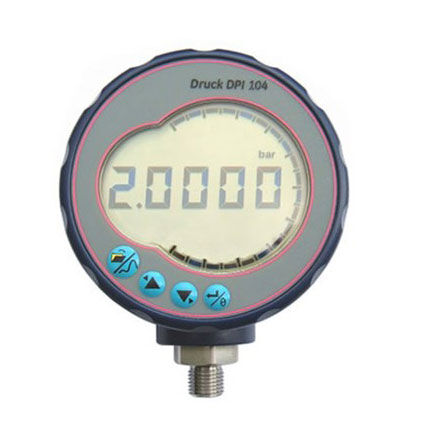

Druck DPI104 Digital Pressure Gauge

The DPI104 Series of microprocessor-controlled digital pressure gauges combine precision and functionality in a compact, robust and simple-to-use package. The DPI104 Series uses advanced silicon sensor technology with several convenient design features, resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a standalone process indicator or in a kit with the widely proven Druck hand pumps, the DPI104 Series provides a reliable and economic solution for a wide range of pressure sensing applications.

Features

• 0.05% full scale (FS) accuracy
• Pressure ranges to 1400 bar (20,000 psi)
• Eleven selectable pressure units
• Large, easy-to-read display with five-digit resolution
• % pressure indication and additional bar graph for quick visual reference
• Temperature compensated accuracy from -10°C to 50°C (14°F to 122°F)
• 0 to 5V analog output
• Pressure switch test
• Minimum/maximum, tare and alarm functions
• IDOS compatible and RS232 serial interface
• Hazardous Area (Intrinsically safe) version available
• Stainless steel or Inconel pressure cavity for aggressive media
