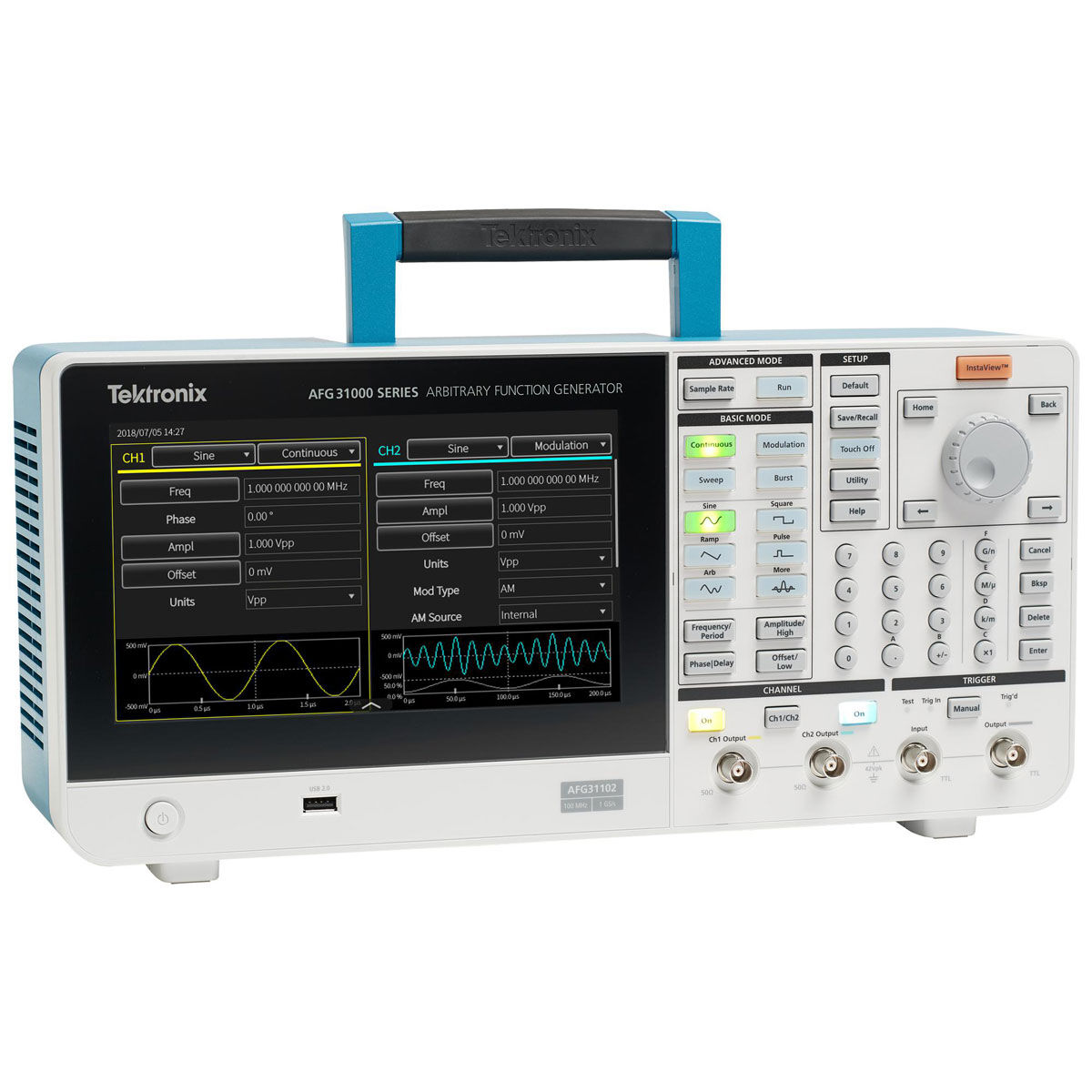

Tektronix AFG31021 Arbitrary / Function Generator, 1 Channel, 25MHz

The Tektronix AFG31000 Series is a high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market. Providing advanced waveform generation and programming capabilities, waveform verification, and a modern touch-screen interface, the new AFG31000 is sure to delight and simplify the job of every researcher and engineer.

• 1 or 2 channel models
• Output amplitude range 1 mV_P-P to 10 V_P-P into 50 Ω loads
• Basic (AFG) mode: 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms; 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates; 14-bit vertical resolution; Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms; Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM)
• Advanced (Sequence) mode: Continuous mode (optional Sequence, Triggered and Gated modes); 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional); Up to 256 steps in sequence mode with loop, jump and wait events; Variable sampling clock 1µSa/s to 2 GSa/s
