Micromar 40 EWRi-V Art. no. 4157150
Liên hệ

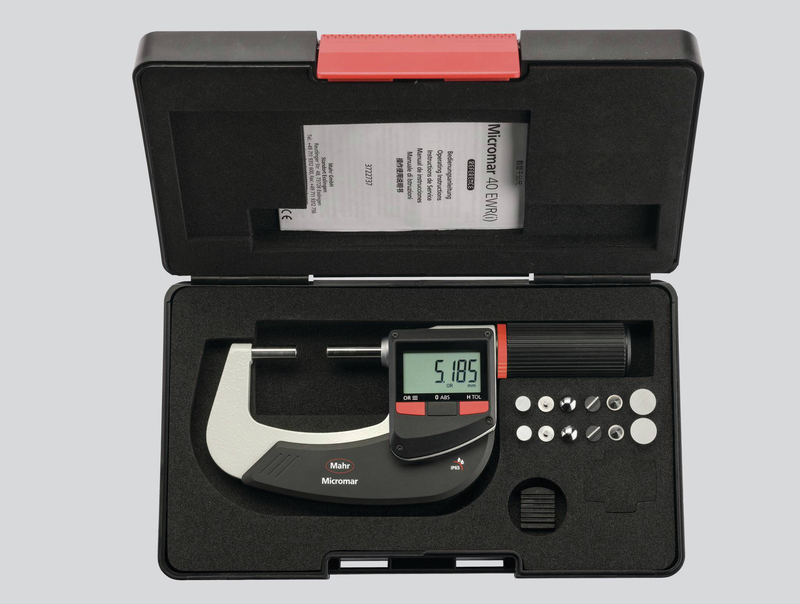

Digital micrometer Micromar 40 EWRi-V
Art. no. 4157150
Universal adjustment to different workpiece and measurement situations using individual interchangeable measuring anvils.
Thread flanks and spherical measuring anvils (optional accessories) can also be used.
IP protection category: IP 65
Data interface: Integrated Wireless
DIN 863-3
Measuring range mm 0 – 25 mm mm
Resolution mm/inch 0.001 / .00005″
Package contains: battery, test certificate, instruction manual, case
- Vận chuyển giao hàng toàn quốc
- Phương thức thanh toán linh hoạt
- Gọi ngay +84 978.190.642 để mua và đặt hàng nhanh chóng
MÔ TẢ SẢN PHẨM
Product Information
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- With mounting bores for measuring anvils with a shaft Ø 3.5 mm
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Technical Data
| Micromar 40 EWRi-V | Art. no. 4157150 | |
|---|---|
| Standard | DIN 863-3 |
| Measuring range mm | 0 – 25 mm |
| Measuring range inch | 0 – 1″ |
| Resolution mm/inch | 0.001 / .00005″ |
| Error limit µm | 4 µm |
| Battery type | CR 2032 (3V Lithium) |
| Spindle diameter | 6.5 mm |
| Spindle thread pitch_mm | 5 mm |
| Measuring force (N) | 5 – 10 |
| Dimensions | a 32 mm | b 11.5 mm | c 57 mm | |
