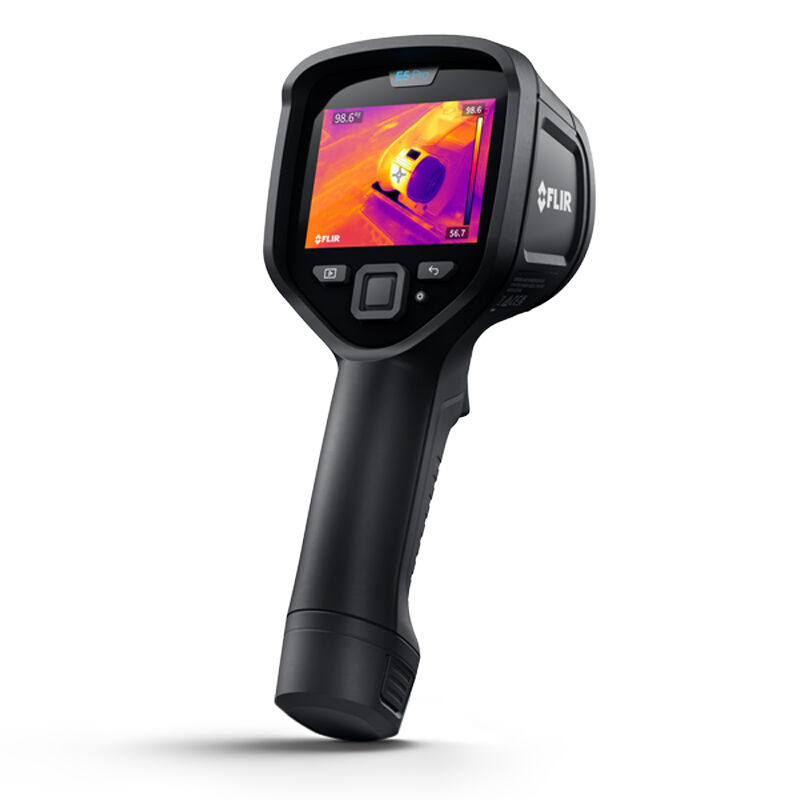

The FLIR E5 Pro is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Locate and diagnose problems quickly with 160 × 120 thermal resolution (19,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Featuring a 3.5-inch, 640 × 480 touchscreen, the E5 Pro simplifies your workflow. You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device. Share images with clients and create quick reports directly in FLIR Ignite or create advanced reports in FLIR Thermal Studio.

INSPECT EFFICIENTLY

Edit and organize your photos, add detailed notes, and upload files from the camera to the FLIR Ignite cloud for convenient access from any device.

IDENTIFY PROBLEMS FAST

FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.

HASSLE-FREE SHARING AND REPORTING

Share images instantly and create quick reports in FLIR Ignite, or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.

MSX® Image Enhancement

All Ex-Series thermal cameras feature FLIR’s unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera’s LCD.

Save Time With 1-Touch Level/Span

1-Touch Level/Span allows you to choose a small area of focus in a thermal image – with one touch of the screen – and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

NFPA 70B Compliant – Delta T Measurement Tools

With NFPA 70B compliant Delta T measurement tools now built into Ex-Series cameras (Box1 Max – Spot1 Max, and Box1 Max – Atmosphere Temperature), you can save a lot of time by calculating ∆T on the camera without any additional steps.

Efficient Inspections at Your Fingertips

Add notes from the touchscreen

Featuring a 3.5-inch touchscreen, the FLIR Ex-Series allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.

Hassle-Free Data Transfer and Sharing with FLIR Ignite

• Desktop Sync eliminates issues created by damaged or missing SD cards and USB cables
• Secure Data Sharing to trusted team for easy collaboration and reporting
• Edit Anywhere allows you or coworkers to create reports on mobile devices, on a browser or desktop
• IR Resolution: 160 × 120 (19,200 pixels)
• Thermal Sensitivity/NETD: <0.06°C (0.11°F) / <60 mK at 30°C (86°F)
• Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
• Field of view (FOV): 33° × 25°
• Digital Camera: 5 MP
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera
• Display: 3.5 in. 640 × 480 color LCD
• Storage Media: Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
• Color Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
• Detector Type: Uncooled microbolometer
• Digital Camera: 5 MP
• Field of view (FOV): 33° × 25°
• f-number: 1.4
• Focus: Focus free
• Gallery: Thumbnails and custom folder structure
• Image Frequency: 9 Hz
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera
