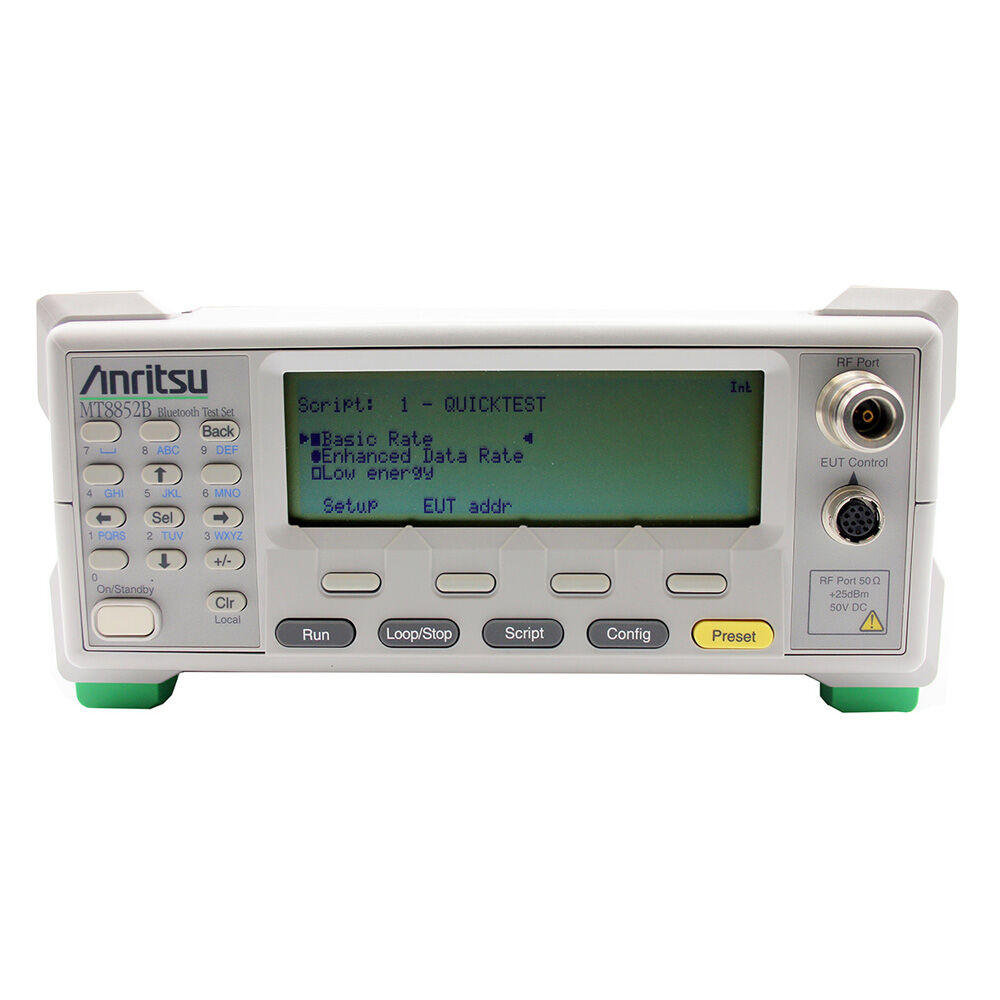

The Bluetooth Test Set MT8852B is the market-leading RF measuring instrument for design proving and production test of a wide range of products that integrate Bluetooth® technology. It supports Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth low energy (BLE) measurement of transmit power, frequency, modulation, and receiver sensitivity required by Bluetooth RF test specifications. In production, a single key press initiates a measurement script that tests a device in less than 10 second

• Measurements performed as defined in the Bluetooth® RF Test Specification
• Compliant with Bluetooth; Core Specifications v1.2, 2.0, 2.1, 3.0+HS, 4.0, 4.1, 4.2 and 5.0
• Qualified by Bluetooth SIG for RF measurements
• Supports 9 Basic Rate and 6 EDR test cases
• Supports 27 Bluetooth low energy test cases
• Single script runs Basic Rate, EDR and Bluetooth low energy tests
• Audio testing capability. Three SCO channels and CVSD, µ-Law and A-Law air interface
• BlueSuite Pro3 software provides graphical traces of modulation, power ramp, individual channel measurements, and receiver sensitivity search
• Adaptive Frequency Hopping (AFH) test function for Bluetooth devices
